Big-Gaz,
Any progress using the Arduino as a controller? I was hoping we could get this thread going again so we can conquer this project once and for all.

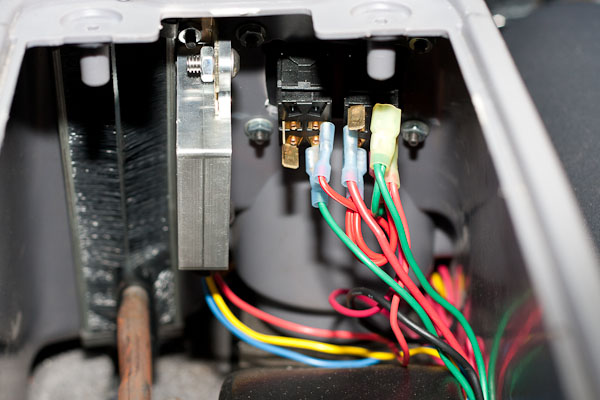

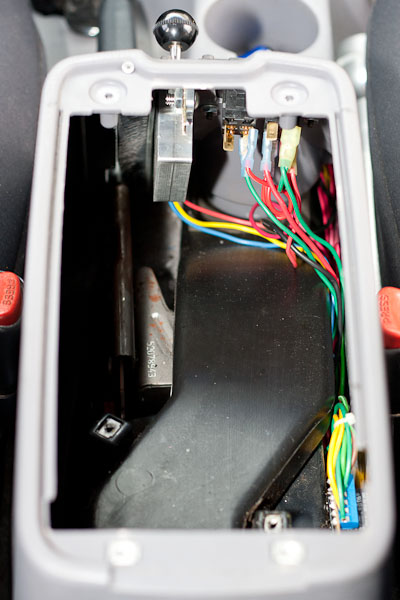

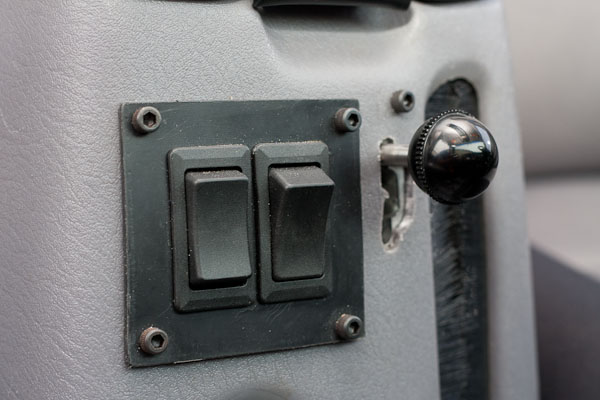

I have a '97 and will be installing this system so I will be able to prove out the gear ratio fault codes on the 98 & up models with the ISS.
Actually I will verify whether my 97 has the ISS as I've heard some differing info, but at any rate I do want to attempt an Arduino setup. I found elsewhere someone who had posted Arduino code. He was pretty close to proving it out (his name escapes me at the moment - was that you?), but anyway, it is listed below. I'm not sure what the schematic should be to utilize the Arduino, but maybe I can muddle through it.
Arduino Uno Code for Tiptronic AW4 Controller
/************************************************** *****************************
Written by Fish, Logic by Big-G
*
* Tiptronic gearbox controllor for Jeep AW4.
* Changes up and down gears, provides torque conveter lockup and
* a 7 segment led display readout of which gear you are in.
*
************************************************** *****************************/
// function prototypes
void power_up();
void power_down();
void chng_to( int );
void abend();
void flash_disp();
int get_gear();
void handle_event( int );
void tcu_ctrl( int );
void tcl_ctrl( int );
// Define our pins - modify to ease hardware layout
const int p_in_sol1 = A0;
const int p_in_sol2 = A1;
const int p_in_onoff = 2;
const int p_out_tcu = 3;
const int p_in_up = 4;
const int p_in_down = 5;
const int p_in_tcl = 6;
const int p_out_sol1 = 7;
const int p_out_sol2 = 8;
const int p_out_sol_tcl = 9;
const int p_out_leddp = 10;
const int p_out_led1 = 11;
const int p_out_led2 = 12;
const int p_out_led3 = 13;
// Events
const int ev_power_change = 1;
const int ev_changeup = 2;
const int ev_changedown = 3;
const int ev_tcl_change = 4;
// Other constants
const int boot_delay = 1000;
const int pwr_up_delay = 1000;
const long debounce_delay = 10;
const int tcl_delay = 250;
const int tcl_long_press = 2000;
// State variables
int running = 0;
int tcl_running = 0;
int current_gear = 0;
int current_up_state = 0;
int current_down_state = 0;
int current_on_state = 0;
int current_tcl_state = 0;
int last_up_state = 0;
int last_down_state = 0;
int last_on_state = 0;
int last_tcl_state = 0;
int last_tcl_on_time = 0;
int auto_tcl_mode = 0;
// switch debounce tracking
long last_debounce_time = 0;
void setup() {
// define pins as inputs or outputs
pinMode( p_in_sol1, INPUT );
pinMode( p_in_sol2, INPUT );
pinMode( p_in_onoff, INPUT );
pinMode( p_out_tcu, OUTPUT );
pinMode( p_in_up, INPUT );
pinMode( p_in_down, INPUT );
pinMode( p_in_tcl, INPUT );
pinMode( p_out_sol1, OUTPUT );
pinMode( p_out_sol2, OUTPUT );
pinMode( p_out_sol_tcl, OUTPUT );
pinMode( p_out_leddp, OUTPUT );
pinMode( p_out_led1, OUTPUT );
pinMode( p_out_led2, OUTPUT );
pinMode( p_out_led3, OUTPUT );
Serial.begin(9600);
Serial.print("Starting...\n");
// power-up steps
tcu_ctrl( 1 ); // turn on power to the TCU
delay( boot_delay ); // hang on a god-damned second
current_gear = get_gear();
}
void loop() {
int up_state = digitalRead( p_in_up );
int down_state = digitalRead( p_in_down );
int on_state = digitalRead( p_in_onoff );
int tcl_state = digitalRead( p_in_tcl );
if (
up_state != last_up_state
|| down_state != last_down_state
|| on_state != last_on_state
|| tcl_state != last_tcl_state
) {
last_debounce_time = millis();
}
if ( (millis() - last_debounce_time) > debounce_delay ) {
if ( up_state != current_up_state ) {
current_up_state = up_state;
if ( current_up_state ) {
handle_event( ev_changeup );
}
}
if ( down_state != current_down_state ) {
current_down_state = down_state;
if ( current_down_state ) {
handle_event( ev_changedown );
}
}
if ( on_state != current_on_state ) {
current_on_state = on_state;
if ( current_on_state != running ) {
handle_event( ev_power_change );
}
}
if ( tcl_state != current_tcl_state ) {
current_tcl_state = tcl_state;
auto_tcl_mode = 0;
if ( current_tcl_state ) { // momentary switch
last_tcl_on_time = millis();
handle_event( ev_tcl_change );
} else {
if ( ( millis() - last_tcl_on_time ) > tcl_long_press ) { // long press
// auto_tcl_mode = 1;
}
}
}
}
last_up_state = up_state;
last_down_state = down_state;
last_on_state = on_state;
last_tcl_state = tcl_state;
if ( (get_gear() != current_gear ) && running ) {
abend();
}
}
void handle_event( int ev ) {
switch(ev) {
case ev_changeup :
if ( ! running ) break;
switch( current_gear ) {
case 4 :
//flash_disp();
break;
default :
chng_to( ++current_gear );
break;
}
break;
case ev_changedown :
if ( ! running ) break;
switch( current_gear ) {
case 1 :
//flash_disp();
break;
default :
chng_to( --current_gear );
break;
}
break;
case ev_power_change :
if ( running ) {
power_down();
} else {
power_up();
}
break;
case ev_tcl_change :
if ( running ) {
tcl_running = ! tcl_running;
tcl_ctrl( tcl_running );
}
break;
}
}
void power_up() {
current_gear = get_gear();
chng_to( current_gear ); // set solenoids and LEDs
tcu_ctrl( 0 ); // kill the TCU
delay( pwr_up_delay ); // hang on a god-damned second
if ( get_gear() == current_gear ) {
running = 1;
} else {
abend();
}
}
void power_down() {
// kill power to the gear solenoids
digitalWrite( p_out_sol1, 0 );
digitalWrite( p_out_sol2, 0 );
tcl_ctrl( 0 ); // turn off the tcl
tcu_ctrl( 1 ); // turn on power to the TCU
// blank the display
digitalWrite( p_out_led1, 0 );
digitalWrite( p_out_led2, 0 );
digitalWrite( p_out_led3, 0 );
running = 0;
}
void chng_to( int new_gear ) {
tcl_ctrl( 0 );
delay( tcl_delay );
switch( new_gear ) {
case 1 :
// gear solenoids
digitalWrite( p_out_sol1, 1 );
digitalWrite( p_out_sol2, 0 );
// LED display
digitalWrite( p_out_led1, 1 );
digitalWrite( p_out_led2, 0 );
digitalWrite( p_out_led3, 0 );
break;
case 2 :
// gear solenoids
digitalWrite( p_out_sol1, 1 );
digitalWrite( p_out_sol2, 1 );
// LED display
digitalWrite( p_out_led1, 0 );
digitalWrite( p_out_led2, 1 );
digitalWrite( p_out_led3, 0 );
break;
case 3 :
// gear solenoids
digitalWrite( p_out_sol1, 0 );
digitalWrite( p_out_sol2, 1 );
// LED display
digitalWrite( p_out_led1, 1 );
digitalWrite( p_out_led2, 1 );
digitalWrite( p_out_led3, 0 );
break;
case 4 :
// gear solenoids
digitalWrite( p_out_sol1, 0 );
digitalWrite( p_out_sol2, 0 );
// LED display
digitalWrite( p_out_led1, 0 );
digitalWrite( p_out_led2, 0 );
digitalWrite( p_out_led3, 1 );
break;
}
if ( auto_tcl_mode ) {
delay( tcl_delay );
tcl_ctrl( 1 );
}
}
void abend() {
// kill power to the gear solenoids
digitalWrite( p_out_sol1, 0 );
digitalWrite( p_out_sol2, 0 );
tcl_ctrl( 0 ); // turn off the tcl
tcu_ctrl( 1 ); // turn on power to the TCU
flash_disp(); // warn the driver
delay( 1000 );
// blank the display
digitalWrite( p_out_led1, 0 );
digitalWrite( p_out_led2, 0 );
digitalWrite( p_out_led3, 0 );
running = 0;
}
int get_gear() {
//return 3;
Serial.print( analogRead( A0 ), DEC );
Serial.print( " - " );
Serial.print( analogRead( A1 ), DEC );
Serial.print( "n" );
int val_sol1 = analogRead( A0 ) > 500 ? 1 : 0;
int val_sol2 = analogRead( A1 ) > 500 ? 2 : 0;
switch ( val_sol1 + val_sol2 ) {
case 0 : return 4;
case 1 : return 1;
case 2 : return 3;
case 3 : return 2;
}
}
void flash_disp() {
// show '0' and flash dp
//digitalWrite( p_out_led1, 0 );
//digitalWrite( p_out_led2, 0 );
//digitalWrite( p_out_led3, 0 );
//running = 0;
digitalWrite( p_out_leddp, 1 );
delay(250);
digitalWrite( p_out_leddp, 0 );
delay(250);
digitalWrite( p_out_leddp, 1 );
delay(250);
digitalWrite( p_out_leddp, 0 );
delay(250);
digitalWrite( p_out_leddp, 1 );
delay(250);
digitalWrite( p_out_leddp, 0 );
delay(250);
digitalWrite( p_out_leddp, 1 );
delay(250);
digitalWrite( p_out_leddp, 0 );
delay(250);
}
void tcu_ctrl(int on_or_off) {
digitalWrite( p_out_tcu, on_or_off ? 0 : 1 );
}
void tcl_ctrl(int on_or_off) {
digitalWrite( p_out_sol_tcl, on_or_off );
digitalWrite( p_out_leddp, on_or_off );
tcl_running = on_or_off;
}
Thanks,
ProfessorGT
