Re: need alternator,01 xj, meen green?

Belt Part #?

Where was the additional grinding required?

Thanks-


Quote:
Originally Posted by Bigger_Is_Better View Post
One more area that needs some relief ground off:




A belt 1inch longer than stock worked great!

Aaron
Reply With Quote
  #62
Old September 18th, 2009, 13:26
j33pownr's Avatar
j33pownr j33pownr is offline
NAXJA Forum User

Join Date: Jul 2006
Location: Raleigh, NC
Posts: 127
Re: need alternator,01 xj, meen green?

I also would like to know what 'extra' you had to grind becuse your bracket looks just like mine.
Reply With Quote
  #63
Old September 21st, 2009, 16:20
Bigger_Is_Better Bigger_Is_Better is offline
NAXJA Forum User

Join Date: Jun 2009
Location: Battlefield, Missouri
Posts: 20
Re: need alternator,01 xj, meen green?

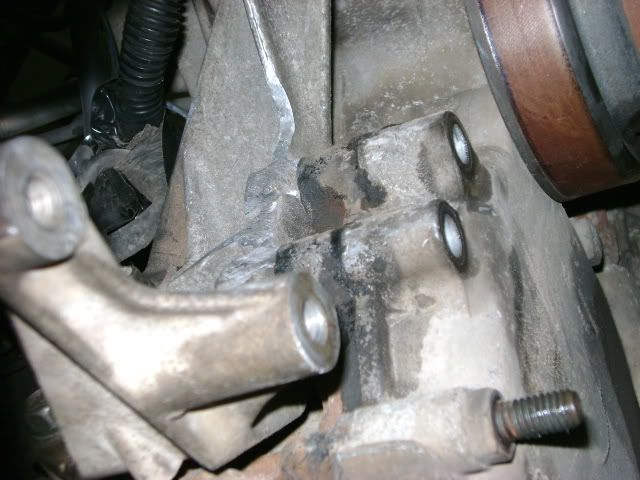

Sorry it took me awhile to get back on here. The extra material wasn't removed from the bracket. It was removed from the two bosses where the studs go through. It's the dark black area in the pic. That's pre-removal. They needed taken back just a bit to more mirror the profile of the grinding on the bracket.

Aaron
Reply With Quote
  #64
Old November 24th, 2009, 20:05
Davinator61's Avatar
Davinator61 Davinator61 is offline
NAXJA Forum User

Join Date: Mar 2007
Location: Kent, Washington
Posts: 60
Re: need alternator,01 xj, meen green?

Quote:
Originally Posted by j33pownr View Post
I did this mod this past weekend using a 136Amp 98 Grand Cherokee 5.2L Alternator in my 92 XJ 4.0L.

For those who wanted to know the amount to trim off the stock bracket here are some pictures for you.

Bolt holes dont quite line up.


This is why they dont line up. Its a snug fit.


Here is what I marked with the Alternator on the Jeep. Hint...Take the bracketry off for a much easier time.


Grind...test fit...grind....test fit...grind sum more...it FITS..


Pic from the bottom


Material removed from the other bracket on the front of the engine.


DONE and DONE


Ask questions while the install is still fresh in my head. My Brains a fading fast lately. But it was as straight forward as everyone said.

BTW I upgraded the POS wire to a 2Gauge battery cable. Now with everything on(dual electric fans, radio blazing and my 100/130 H4 headlight swap) the volt meter stays at 14v solid.
Sorry to NECRO this thread, but, how long did it take you to complete this Alternator Swap you did, what with all the grinding and cutting of the mounting brackets, and such pleasantries, you had to engage in? I'd like to know as I'm about to start the same install on my 1991 XJ Laredo this Friday, the day after Thanksgiving, and don't want to take more than two days to finish the "Task At Hand". Also, any advice on this endeavor, that wasn't touched on previously, would be a big help as well. Thank you in advance.
Reply With Quote
  #65
Old November 25th, 2009, 06:58
kastein kastein is offline
NAXJA Forum User

Join Date: Jul 2009
Location: Central MA - keep going till the road turns to dirt, then listen for banjos
Posts: 14,009
Re: need alternator,01 xj, meen green?

If you have all the required parts on hand, I'd bet you could do it in a day with a Dremel or an hour or so if you're good with a ~4.5" angle grinder.
Reply With Quote
  #66
Old November 25th, 2009, 07:12
89xj 89xj is offline
NAXJA Forum User

Join Date: Apr 2003
Location: aston,pa
Posts: 3,899
Re: need alternator,01 xj, meen green?

Quote:
Originally Posted by Davinator61 View Post
Sorry to NECRO this thread, but, how long did it take you to complete this Alternator Swap you did, what with all the grinding and cutting of the mounting brackets, and such pleasantries, you had to engage in? I'd like to know as I'm about to start the same install on my 1991 XJ Laredo this Friday, the day after Thanksgiving, and don't want to take more than two days to finish the "Task At Hand". Also, any advice on this endeavor, that wasn't touched on previously, would be a big help as well. Thank you in advance.
i found the hardest part was not snapping the bolts when removing the bracket and alternator. on my 89, its a crap shoot when removing any nut or bolt on the entire jeep because of rust/corrosion.

the grinding was the easy part. use plenty of rust breaker on all the bolts
Reply With Quote
  #67
Old November 26th, 2009, 05:47
higgsxjyar higgsxjyar is offline
NAXJA Forum User

Join Date: Mar 2008
Location: pennsylvania
Posts: 83
Re: need alternator,01 xj, meen green?

haha, i DID buy a sexy new meangreen right after i started this thread. it's still in the box, in my livingroom................m such a loser
Reply With Quote
  #68
Old February 17th, 2010, 04:33
Hammered's Avatar
Hammered Hammered is offline
NAXJA Forum User

Join Date: Nov 2007
Location: Jeep Fiend Club
Posts: 5,266
Re: need alternator,01 xj, meen green?

My alt just went. ugh... looks like I have an upgrade to do.
Reply With Quote
  #69
Old February 17th, 2010, 06:54
higgsxjyar higgsxjyar is offline
NAXJA Forum User

Join Date: Mar 2008
Location: pennsylvania
Posts: 83
Re: need alternator,01 xj, meen green?

i am gona proly sell the meangreen. it stil in box, brand new, not gona use it.....
Reply With Quote
  #70
Old February 17th, 2010, 17:40
dave92cherokee's Avatar
dave92cherokee dave92cherokee is offline
NAXJA Forum User

Join Date: Feb 2008
Location: Lynchburg, TN
Posts: 1,867
Re: need alternator,01 xj, meen green?

I went with the 160A alt from autozone when I moved mine up to where the A/C was and only had to grind down some of the bracket to get it to fit, the part number from autozone was 12329.
Reply With Quote
  #71
Old February 20th, 2010, 11:23
JWFokker JWFokker is offline
NAXJA Forum User

Join Date: Jun 2008
Location: Kingston, NY
Posts: 99
Re: need alternator,01 xj, meen green?

Are there any drawbacks to going with a higher output alternator? Reduced HP?
Reply With Quote
  #72
Old February 22nd, 2010, 07:25
89xj 89xj is offline
NAXJA Forum User

Join Date: Apr 2003
Location: aston,pa
Posts: 3,899
Re: need alternator,01 xj, meen green?

Quote:
Originally Posted by JWFokker View Post
Are there any drawbacks to going with a higher output alternator? Reduced HP?
drawback could be not having the correct size/gauge wire in the curcuit for the increased voltage output.
Reply With Quote
  #73
Old February 22nd, 2010, 16:16
5-90's Avatar
5-90 5-90 is offline
NAXJA Forum User

Join Date: Mar 2003
Location: Hammerspace
Posts: 18,799
Re: need alternator,01 xj, meen green?

Which is why I always suggest a mains upgrade in threads like this sooner or later...
Reply With Quote
  #74
Old March 26th, 2010, 07:26
jeepman75's Avatar
jeepman75 jeepman75 is offline
NAXJA Forum User

Join Date: Oct 2004
Location: Des Moines, IA
Posts: 136
Re: need alternator,01 xj, meen green?

I am bringing this back to add a little info on what I am doing since this thread has the most info on upgrading alternators.

This is the one I got from NAPA http://www.napaonline.com/Search/Detail.aspx?A=RAL138632_0209531262&An=599001+10199 8+50038+2038005+3038007+3999999+4294881155 Lifetime warranty, 136amp that was optional for a 98 ZJ with the 4.0L

I went with that one cause it already has the 6 groove pulley and the black boot for the charging wire is the same as the XJ. That way I only have to shave the mounting brackets and upgrade the main wires to make it work.

For the mains I am going with 4 gauge for both + and - including the ground at the back of the block and replacing the fused link from the alt with a 150amp mega fuse from NAPA http://www.napaonline.com/Search/Det...138_0006409350

And this holder for it http://www.napaonline.com/Search/Det...143_0273937467
Reply With Quote
  #75
Old March 26th, 2010, 11:05
CharlesS's Avatar
CharlesS CharlesS is offline
NAXJA Forum User

Join Date: Mar 2003
Location: Carmel Mountain Ranch, CA
Posts: 2,435
Re: need alternator,01 xj, meen green?

Seems as though this discussion continually surfaces....

As 5-90 said you WILL need to upgrade you battery cables and the charging cable from the alternator to the PCM in the engine compartment.

When I did the uprade I built my own cables from 2 ga fine stranded polarity colored pos and neg cables with fusion battery clamps and terminals. The ground pigtail and the alternator charging lead were 4 ga fine stranded with fusion terminals.
When I upgraded the charging cable I remove the small fusible link and installed a 150A marine grade mini buss fuse and fabricated another terminal for the PCM.

Used a 136A alternator from a 98 ZJ 5.2L 4x4 which required that I grind the aluminum mounting bracket as shown previously and also the black stamped steel front mount to clear the larger alternator case.
You will need to remove the original charging cable terminal boot and install it on the new alternator since there is a pin that positions the boot properly. Good idea to swap the serpentine pulley since the XJ and ZJ pulleys are different diameters and extra grooves.


This modification has worked very well with upgraded headlights, off road lights, ham radios, and several other items...
